Sharing configuration in multi-site and multi-profile platforms: A Modern Odyssey

David López

drupal.org/u/akalam
Playing with Drupal since 2008

Ricardo Sanz

drupal.org/u/tunic
Playing with Drupal since 2008

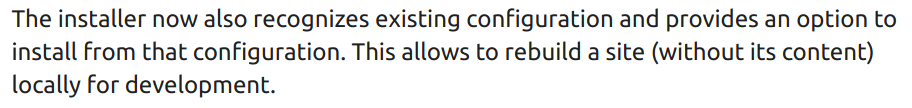

Drupal 8.6

• It allows to install a site from an existent configuration.
• This is not a default configuration but a site configuration that's applied when a cim is done.
• Initially for development purposes:
• 1613424 - [META] Allow a site to be installed from existing configuration

How to

1. Place configuration in configuration directory path.
   You can set your own directory if you want:


   $config_directories[CONFIG_SYNC_DIRECTORY] = '/path/to/configuration';


2. Install:
   • Web interface: Drupal standard installation page.
   • Drush 9.4: --existing-config param.


     drush site-install --existing-config -y

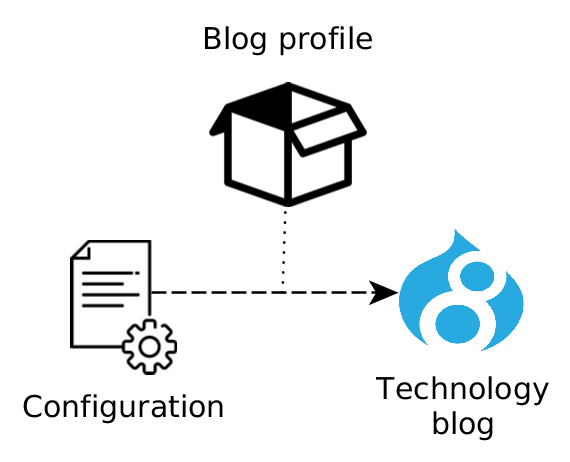

Demo!

Limitations

• Profile can't use hook_install^*
• Only applicable for one site (or exact clones, because configuration is the same).

Use

• Set up a site in certain environments (local, CI).
• It doesn't include content (advantage or drawback?).
• Allows to create installation profiles easily.

Let's extend it!

What if we …?

• …use installation profiles to get types of sites easily installed from an existent configuration?
• …use mechanisms to customize each site's configuration?
• …try to reuse configuration in a family of sites?

Examples

• Group of corporate websites.
• Family of similar but different media publishing websites.
• SaaS website for building specific types of websites.
• World wide organization with sites per country, region and/or events.
• …

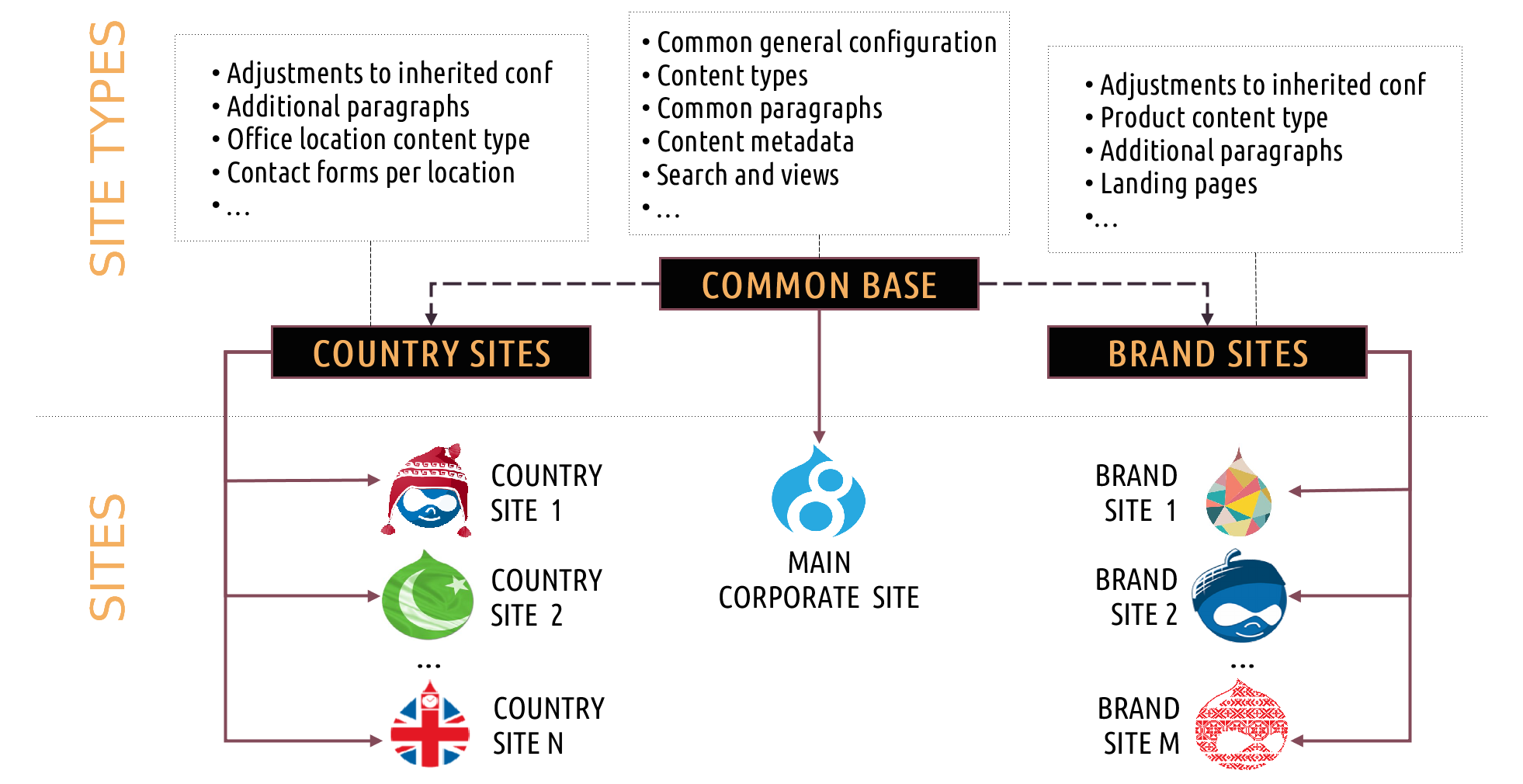

Corporation

What

What

• Set of installation profiles sharing a common conf.
• Installation profiles can customize the conf.

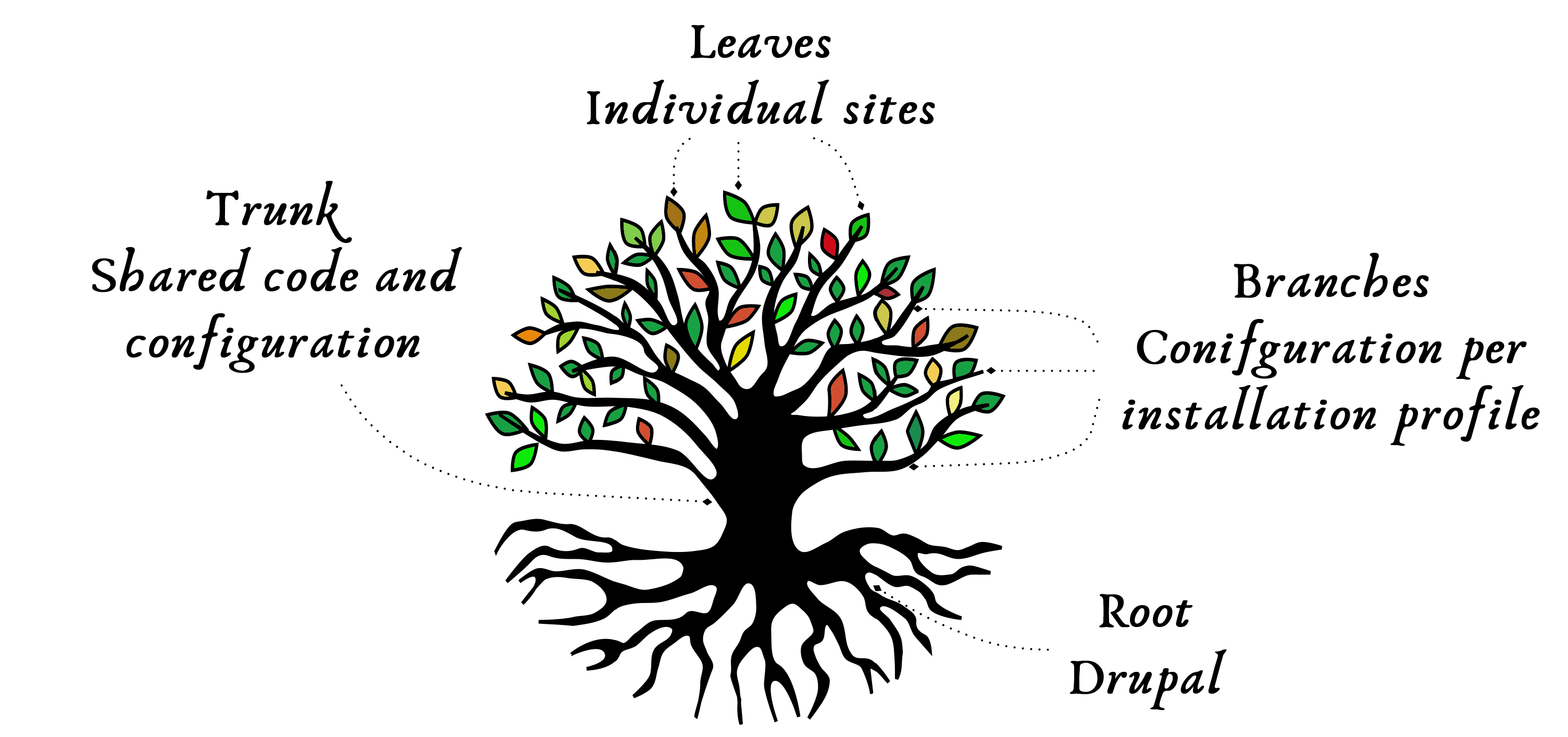

• Use inheritance to create a hierarchy of installation profiles.
• Sites can customize their configuration as well.
• Ability to enable a module that provides a complete functionality to site (Features style).
• In one line: we reuse code, let's reuse configuration.

How

• Sites are installed from installation profiles and get its config from the existent configuration.
• The existent configuration (yml files) is shared by installation profiles.
• Use installation profile inheritance to extend parent profiles.
• Config Filter, Config Split and Configuration Override System to customize sites's configuration based on different conditions.

What we need

1. Automatically apply existent configuration on install profile installation.
2. Install profile inheritance.
3. Installation profiles that share a common configuration.
4. Enable custom site's configuration on certain conditions.

What is?

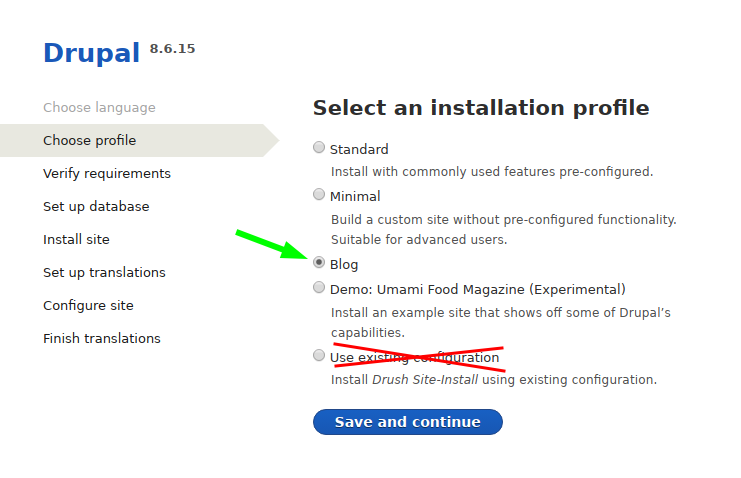

• What Drupal 8.6 does, but just selecting an installation profile.
• Site is installed using existent configuration.
• First implemented in Config installer installation profile.

How to

How to

• existing-config parameter needs to be automatically enabled.
• Enabled from installation profile code.
• Implement hook_install_tasks_alter() on MY_PROFILE.profile.

How to

/* Implements hook_install_tasks_alter(). */
function MY_PROF_install_tasks_alter(&$tasks, $install_state) {
  _MY_PROFILE_install_tasks_alter($tasks, $install_state);
}


function _MY_PROFILE_install_tasks_alter(&$tasks, $install_state) {
  // Use the Drupal 8.6 way of importing from existing conf.
  if (!$install_state['parameters']['existing_config']) {
    // @codingStandardsIgnoreLine
    global $install_state;
    $install_state['parameters']['existing_config'] = TRUE;
  }
}



What is?

• An installation profile is a Drupal extension (like any module) defined by a .info.yml file.
• Using inheritance we can define an installation profile hierarchy.
• An installation profile also installs the ascending profiles in the hierarchy.
• Can implement code or configuration that is available to their descendants.

How to

• Used by Lightning Core module, part of Acquia's Lightning distribution.
• We need 2 patches:
  • 1356276 (531) - Allow profiles to define a base/parent profile and load them in the correct order.
  • 2914389 (8)- Allow profiles to exclude dependencies of their parent.

How it works?

name: 'Parent Profile'
type: profile
core: 8.x
install:
  - module_a
  - module_b
themes:
  - my_theme


name: 'My Profile'
type: profile
core: 8.x
'base profile': parent_profile
install:
  - module_c
  - module_d
exclude:
  - module_b


What is?

• Having different installation profiles that install/import configuration from same source.
• A site can be installed from any available installation profile and existent configuration will be applied.

Problem

...
  views_ui: 0
  menu_link_content: 1
  views: 10
  my_profile: 1000
profile: my_profile


Problem: Profile in core.extensions

• Installation profile in core.extension can't be altered or overwritten by Config Split.
• If all sites share the same configuration, all sites should have the same installation profile.

How to solve

• core.extension is a configuration entity.
• Remove installation profile from core.extension.yml (shared file by all profiles/sites).
• Inject installation profile name in core.extension configuration entity on each site when needed.
• When exporting configuration, strip out installation profile name.

Remove installed installation profile from core.extensions.yml

...
  views_ui: 0
  menu_link_content: 1
  views: 10
  my_profile: 1000
profile: my_profile


During site installation

• Drupal triggers a validation error during installation checks because core.extensions.yml lacks an installation profile.
• Drupal needs the installation profile name during installation.

During site installation: validation

During site install: actual installation

// The installation profile has been removed from core.extension.yml
// but this config is required for a complete installation.
if ($install_state['active_task'] == 'install_config_import_batch'){
  $profile = $install_state['parameters']['profile'];
  \Drupal::configFactory()->getEditable('core.extension')
    ->set('profile', $profile)
    ->save();
}


During site life: export/import config

• When exporting configuration (cex) Drupal would write the site's installation profile into core.extensions.yml.
• When importing configuration (cim) Drupal would trigger an error becuase there's no installation profile in core.extensions.yml.

During site life: export/import config

/**
 * Excludes installation profile from to core.extension.yml.
 *
 * @ConfigFilter(
 *  id = "MY_PROFILE_exclude_profile",
 *  label = "Allows to exclude the profile from core.extension.yml",
 *  storages = {"config.storage.sync"},
 *  weight = 10
 * )
 */
class ExcludeProfile extends ConfigFilterBase
      implements ContainerFactoryPluginInterface {
...



During site life: export/import config

/**
* {@inheritdoc}
*/
public function filterWrite($name, array $data) {
  if ($name == 'core.extension' && isset($data['profile'])) {
    unset($data['profile']);
  }
  return parent::filterWrite($name, $data);
}


During site life: export/import config

/**
* {@inheritdoc}
*/
public function filterRead($name, $data) {
  if ($name == 'core.extension') {
    $data['profile'] = $this->profile;
  }
  return parent::filterRead($name, $data);
}


What is?

• Allow to customize shared configuration (or apply certain config entities from files) based on different conditions.
• We can have specific configurations for:
  • Installation profile.
  • Environments.
  • Site.
  • Functionality.
  • …

How to

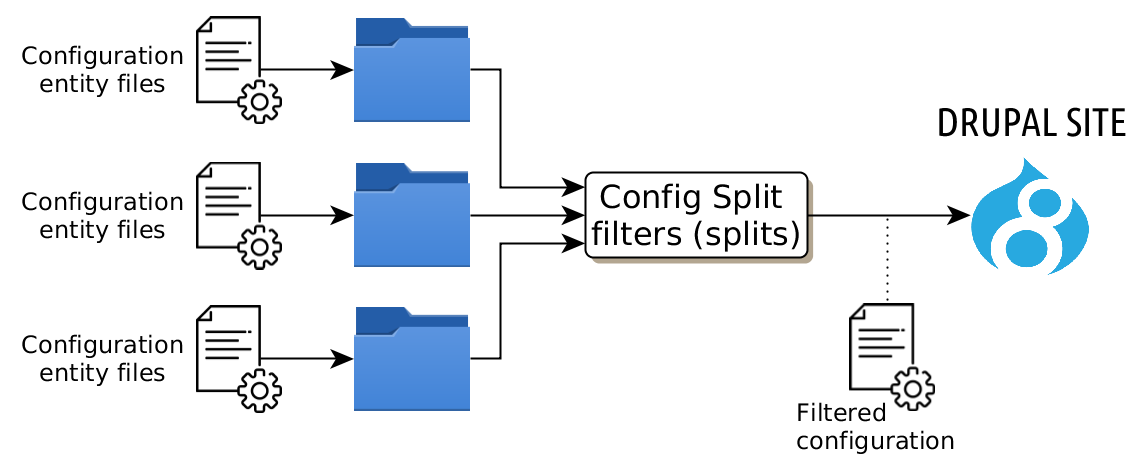

Using the power of Config Split.

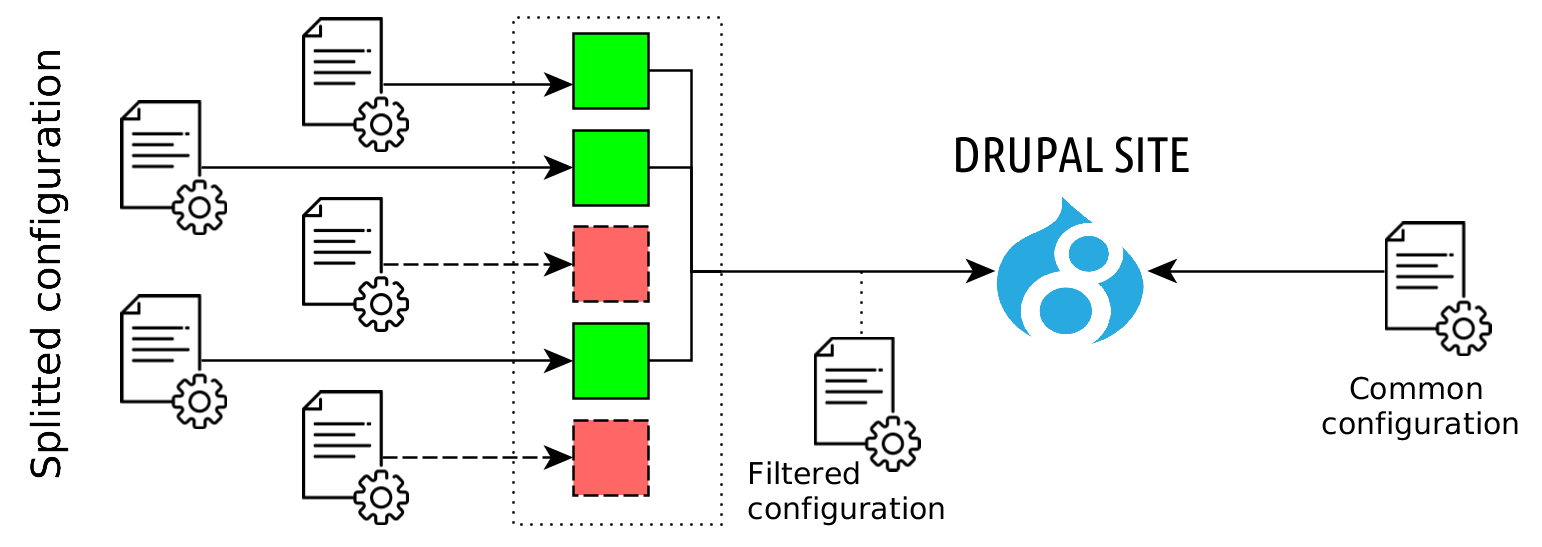

Config splits

• Config splits represent a certain package of functionality (per site, per environment, per module, etc).
• Config splits are initially disabled.
• Config splits are enabled when conditions are meet (current site, current environment, site's profile, installed module, etc).
• When config is imported, enabled splits "alter" the read configuration.

Config splits

Two cases: non-Drupal condition

• Key: Drupal "bootstrap" is not needed to check condition.
• Config splits are activated by simple conditions.
• Common way to enable splits.
• Example: using a settings.local.php to enable by environment.
• Example: using simple code that checks available data, like request's domain.

Two cases: Drupal condition

• Key: Drupal "bootstrap" needed to check condition.
• If Drupal is not "bootstrapped" (like in setting.php) is too soon to run Drupal services.
• Services are needed for enabling a config split if a module is installed (Features style).
• Relying on global variables is a bad practice.
• Solution: Enable the config splits with a configuration override service!

Configuration override service: how to

• Create a service that implements ConfigFactoryOverrideInterface.


  class ConfigOverrides implements ConfigFactoryOverrideInterface {


• And tell Drupal to use it!


  services:
    blog.overrider:
      class: Drupal\blog\ConfigOverrides
      arguments:
        - '%container.modules%'
        - '%install_profile%'
      tags:
        - {name: config.factory.override}


Configuration override service: how to

• The service hooks into configuration management and enable the config splits.
• Because it's a service it has all the info available (see params).
• More details in the session's example repository: https://bitbucket.org/david_akalam/metadrop-ddd_2019_examples/src/dev/

Demo 2a A!

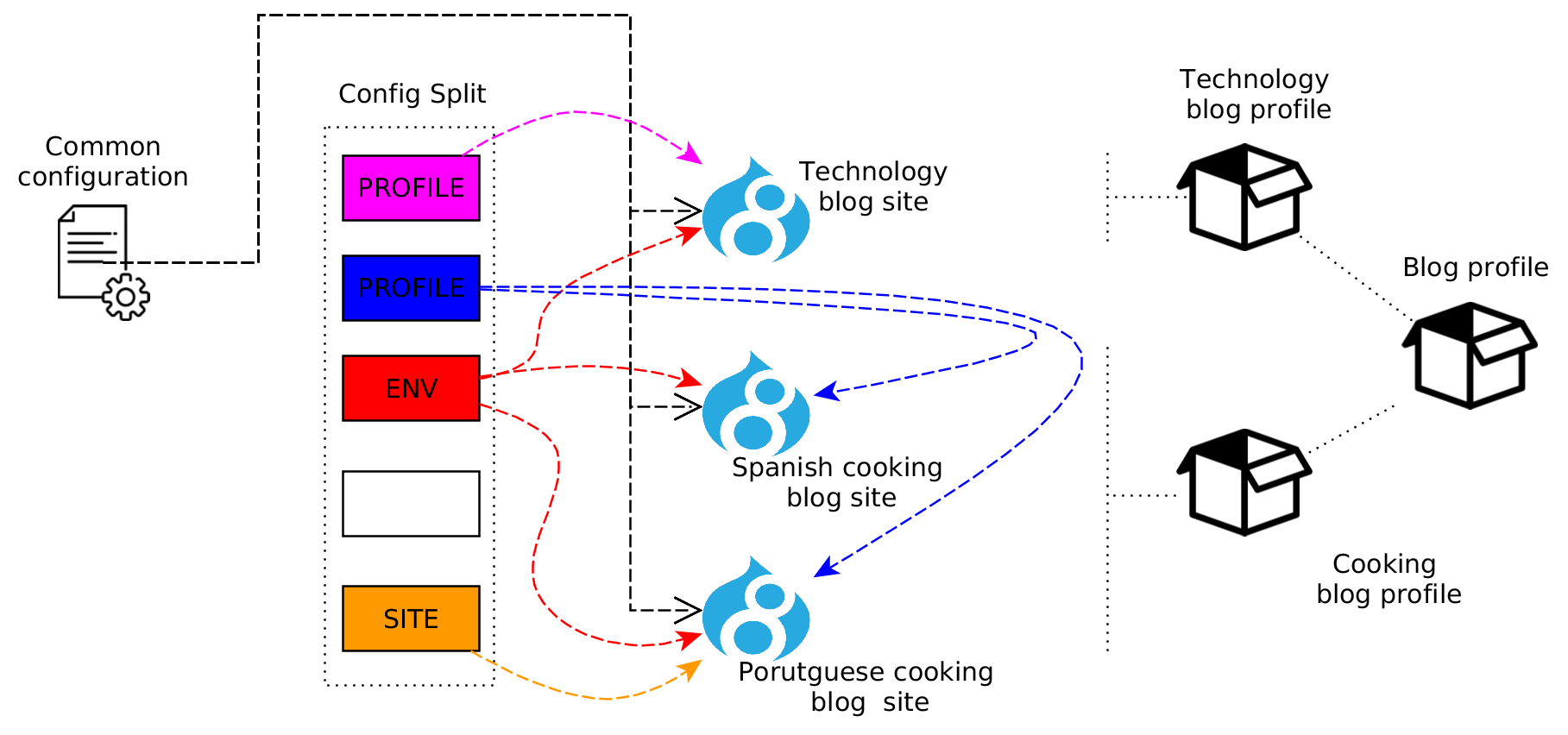

Demo 2B!

Benefits

• Configuration reuse in a multisite multiprofile environment.
• Customized configuration based on almost any condition.
• Build and envolve family of sites easily (or not die trying!).
• Factories of sites.
• Drastic cost reduction in the medium to long term for large families of sites.

Limitations

• Sites configuration must be related.
• Installation profiles must be in same hierachy.
• Complex to design the splits structure and distribute configuration among them.
• Sites configuration can't be too customized.
• High initial cost.

Final notes

• This is a platform of related sites.
• You don't need multisite for this.
• You could use just an installation profile.
• Therefore, you don't need installation profile inheritance.
• This is not likely to be in core. Core should stay simple and cover many cases but no all.

CMI 2.0

• See Roadmap for CMI 2.
• Work in progress! Help is much appreciated!
• Three focus: improve docs, enviroment specific configuration and cross configuration workflows.
• Config Transform import/export events that allow subscribers to modify config.
• Experimental Configuration Environment to change environment from command or UI.

Questions?
